Hi,

I'd like to report that the new site-layout causes problems on Safari on mac.
I am using Yosemite with Safari 9.

The problem is that on a subpage you cannot select any post or section. The links do not work (not recognised as links by safari)

Okay, thank you for explaining this to me. Nice hearing these design stories

Would it be possible for you to post a picture of that detent switch with isulation ?
Just to be sure I got it right

Thanks for the service!

ps your MCU-II is still going strong

Hi Ron, The mech was still giving me headaches and earpain. Stil bad sound. Yesterday I bought a different SMC-1 Mech and connected it. It sounded better allready with the old hardened rubbers still in it. So I cleaned the new Mech, Switched rubber parts from old one to the new one and now I have a ...

Yes I agree, I ordered new mounts, different manufacturer this time. Because of the difference in size we will need to make an adapter ring. But thats the least of the problems :) I'll get back with the results once the parts are in. Thanks soo much so far ps. I got your new CPU and it works wonderf...

I replaced only one, the top one. The one at the bottom looks fine still, thought the rubber is a lot softer.

I have a situation now where the jukebox sounds great! Very happy with that. When I took it all apart I noticed that the new motor=mount that I got was a lot stiffer than the Original one still mounted at the bottom. So I removed the top mount and put the motor back in without it. Problem solved (I ...

I have not yet taken apart the turntable completely. I did take it apart a little to mount the new turntable rubbers. The bearings felt good. I believe there is nothing left to do but take the whole turntable out of it and see how everything is. We will make a new bearing then from brass and fix tha...

Hi Ron, Good to hear te parts are good. I took the motor out and noticed some "play" in the "drive shaft"? The one where the motor coupling is connected to. Here is a video of it: play on driveshaft The Clamp is holding a firm grip. No change when pressing extra against it. When ...

Hi Ron, Very happy with your input still on this, let me try to answer your questions. 1. I assume you mean that the inner dimensions of the mounts are different from the older mounts available. The product I bought is this one . It's a special version with an adapter ring so it fits. 2. I did the a...

This problem is still ongoing and is taking the joy out of listening to the music.
I'll buy your Mech book and see if I missed anything during my hours of inspection and testing.

Hope I can resolve this issue.

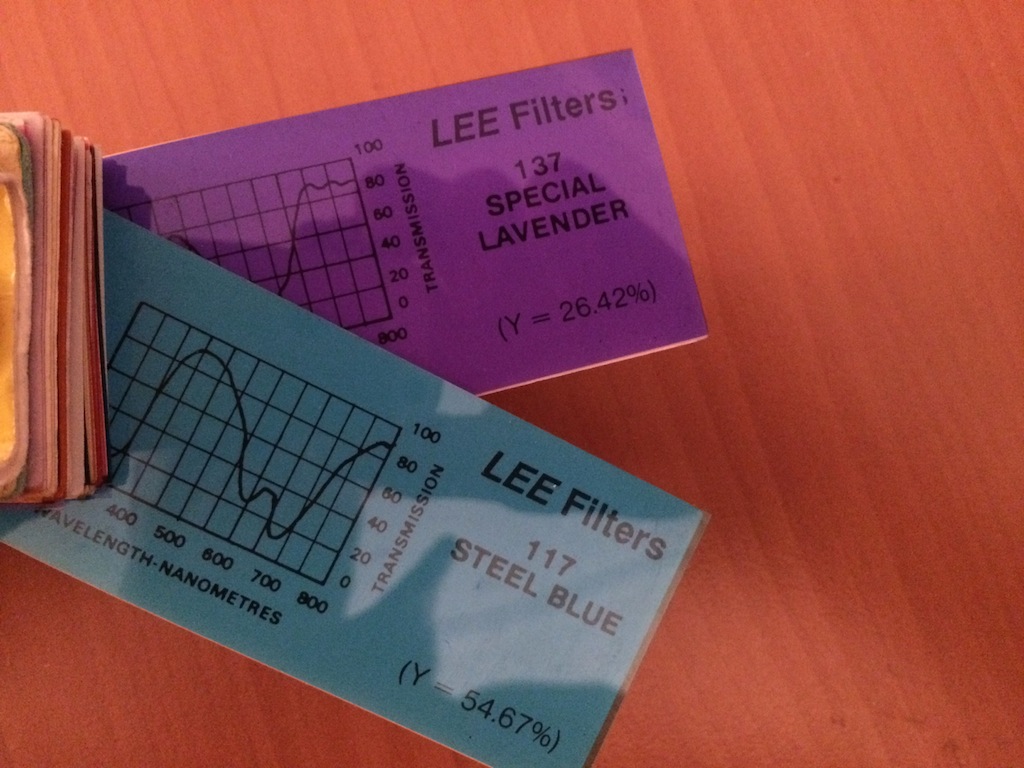

Here are the foils I used. They are used in Theaters as filters for their Lights.

Friend of mine uses foils to color the lights in a theater. He had a sample book with all foils in it. I just matched the best looking ones.
I'll have to find the pictures of them. I'll post them shortly.

ps. Sorry for the delay

It's absolutely original.
Even the ads have those.

It's purely cosmetics, I have new ones on my juke, the original ones were completely yellowed. New ones make it looks so much better!

I'm still not happy with the sound on this Juke. However, I have never heard one play so maybe I'm just asking too much? Main problem is that there is still a light flutter in the sound. You can hear this best on a constant tone in the mid-range. Disco songs, beats etc sound marvelous. I'm a little ...

I find this true on my SMC1 as well. The highs sound distorted, or over modulated. When I connect a normal pick-up to the amp it all sounds very very good and lower in volume. This made me think the signal I was getting from the cartridge / needle. I have replaced the needles with NOS yellow see bur...
