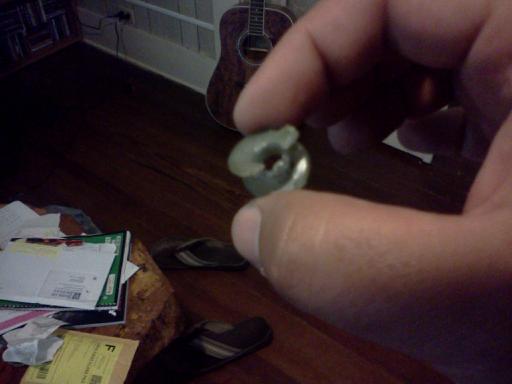

The tiny bluish part is the piece to replace. It's found at the top of the spring and arm shown here.

I recently moved, and my movers unlocked the cabinet on my Diplomat to see how it worked. They didn't lock it back. Then, when they knocked it over, the cabinet flew open, shattering the glass. Additionally, because it opened so wide, there are 2 small plastic pieces I need to replace. I cannot find...

Ron, we cleaned it and worked it a few times to get it going good, and once it was back together CORRECTLY (oops), it works like a charm. Thanks for all the input, guys.

It's time to concede that I'm in way over my head. I set everything up exactly (or as close as I can get to) as the manual I have (same as those scans) shows. Now, nothing lines up.

O boy So everything is cleaned and replaced in as close to original position as I know (based on pictures, video, etc.). Granted, there is probably some detail I am overlooking. Because - the situation now is that the carousel will not turn. It seems that the cam and trunnion gears are not engaging ...

It's a greasy, gummy mess. I was surprised how easily it was removed. It's soaking now.

My AMI/Rowe Diplomat will not return a record to the carousel. It will retrieve one, play it, and attempt to return it, but it drops the record onto the turntable before it can return it. Any suggestions? The manual does not tell how to troubleshoot it.

Touche.

I plan to take it apart and clean the components this week and see how that goes. Thanks for the chuckle.

I'm not entirely sure I understand what you mean. The arm does move pretty slow when attempting to return a record. Sometimes, I grips the album and then drops it as though the rear "plunger" at the base of the arm is prematurely withdrawing.

Thanks Alan and everyone. Due to some first rate tinkering and good luck, all is working, shy of a blown bulb. The problem actually was in the credit unit. It had no movement and thus was leading to the buttons not becoming engaged. Once I wiggled it, everything went great . . . . except - Now when ...

I'm struggling. The part that was jarred loose in transport is the selector assembly. The keys are pushed down and are making contact, but they are not engaging as they should. When I press the credit button, there is a clicking noise, but I am not sure if that is reaching the selector assembly or i...

The unit below the selection buttons was loose. I snapped it back into place. The selection keys do not engage and release as they should. The manual mentions something about diodes and an RI unit. This is a foreign language for me.

Bear with me, I'm a noob. I recently purchased an AMI / Rowe jan 200 diplomat (from 1965). Before I bought it, the gentleman plugged it in and we listened to a few 45s. To travel, we laid it on its back. Once home, it no longer plays. The power comes on. The lights come on. The carousel will turn us...
