Magnavox Astro Sonic chassis number help please

by aldrichg9 » Thu Aug 01, 2013 12:49 am

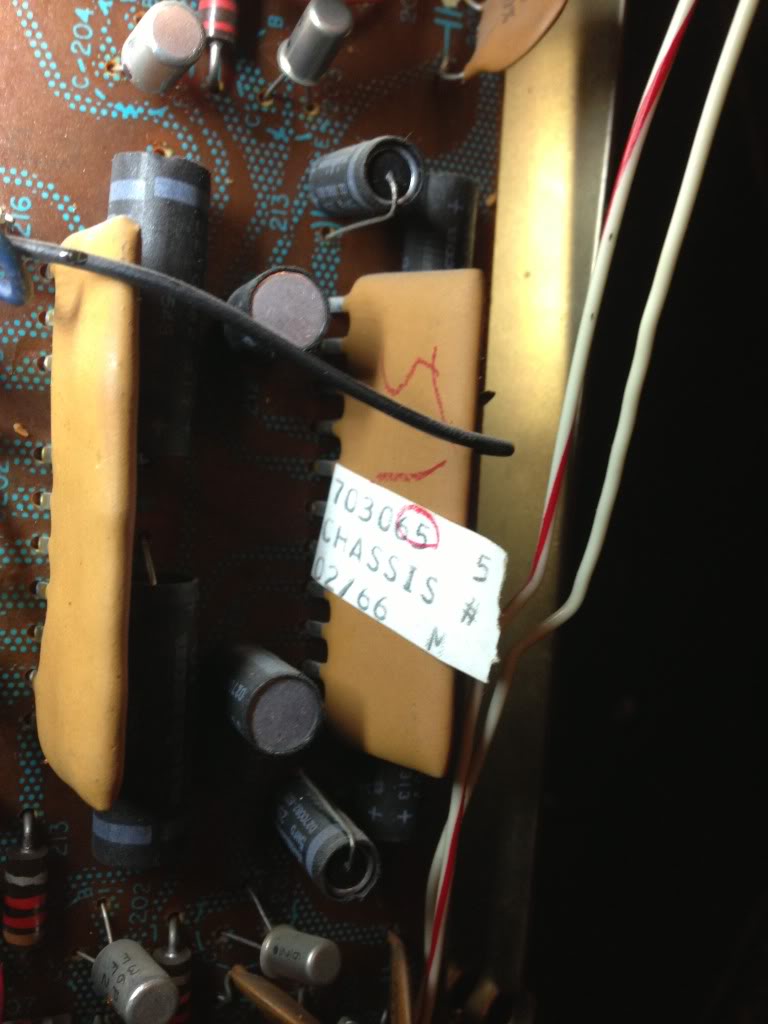

Can anyone tell me what this chassis number means?
Been searching for a bit now and coming up empty handed.
Guess I expected to see r204 or r214 on the little tag



Topic author
aldrichg9
Junior Member
Posts: 10
Joined: Sat Jul 20, 2013 5:49 am
Location: Casey, IL

Re: Magnavox Astro Sonic chassis number help please

by aldrichg9 » Thu Aug 01, 2013 12:50 am

Hmm that picture didn't show up properly.
Here is a direct link to it on my photobucket.

http://i1202.photobucket.com/albums/bb3 ... null-3.jpg


Topic author
aldrichg9
Junior Member
Posts: 10
Joined: Sat Jul 20, 2013 5:49 am
Location: Casey, IL

Re: Magnavox Astro Sonic chassis number help please

by aldrichg9 » Thu Aug 01, 2013 1:09 am

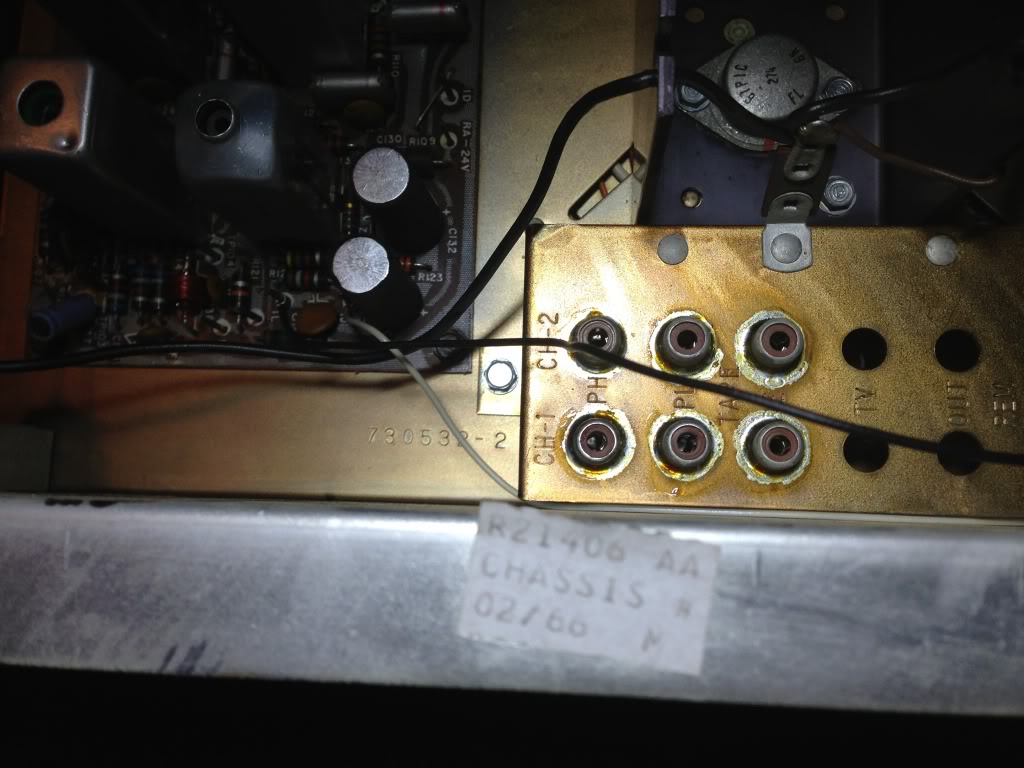

Never mind. I completely missed this other tag.
Turns out I have the manual for the R204 rather than the R214. Oops



Ron Rich
Forum Moderator
Posts: 8193
Joined: Sun May 06, 2007 11:31 pm
Location: Millbrae (San Francisco area)CA, USA

Re: Magnavox Astro Sonic chassis number help please

by Ron Rich » Thu Aug 01, 2013 5:06 am

IMHO--The "C" indicates the # of the cap sitting near it--the "R" mark indicates the resistor number.
Ron Rich


Topic author
aldrichg9
Junior Member
Posts: 10
Joined: Sat Jul 20, 2013 5:49 am
Location: Casey, IL

Re: Magnavox Astro Sonic chassis number help please

by aldrichg9 » Thu Aug 01, 2013 5:50 am

Thanks for responding Ron
That not quite what I meant however.
I was just referring to the model of the chassis, not the components on it.

Have a good evening.


Rob-NYC
Senior Member
Posts: 1844
Joined: Sun Sep 25, 2011 3:05 am
Location: Manhattan, NYC USA

Re: Magnavox Astro Sonic chassis number help please

by Rob-NYC » Thu Aug 01, 2013 10:53 am

From what I can see in that pic it appears to be the tone amp board:

http://www.fileconvoy.com/dfl.php?id=gd ... f9dafdf93b

These are the schematics:

http://www.fileconvoy.com/dfl.php?id=ge ... 4e86af7414

http://www.fileconvoy.com/dfl.php?id=g8 ... 1c25154d0e

http://www.fileconvoy.com/dfl.php?id=g7 ... 5c66a1153e

The bulk of the amplification takes place in the second and third schematics.

Rob/NYC
"If we believe absurdities, we shall commit atrocities" -- Voltaire


Bobby Basham
Senior Member
Posts: 498
Joined: Sat Aug 26, 2006 2:50 pm
Location: Tucson, Arizona, USA

Re: Magnavox Astro Sonic chassis number help please

by Bobby Basham » Tue Aug 06, 2013 5:12 pm

Greg, I got your back. Email me if you need more info. --BB

Bobby Basham
Tucson, Arizona
