Rock-Ola 440 PRVC Jumpers

Las Vegas Jukebox · by **Las Vegas Jukebox** » Wed Apr 30, 2014 5:10 am

Hi
Does anyone know which pins need to be "jumped" on the powered remote volume control socket, located on the power supply of a Rock-Ola 440 when the remote unit is not plugged in?

When the remote volume unit is absent the whole jukebox is "dead" without the jumper plug. My manual doesn't show the power supply in any detail - I think the manual is geared more toward the 437.

Rob-NYC · by **Rob-NYC** » Wed Apr 30, 2014 5:31 am

Are these of any use?:

http://www.verntisdale.com/Rockolaschem.htm

In particular:

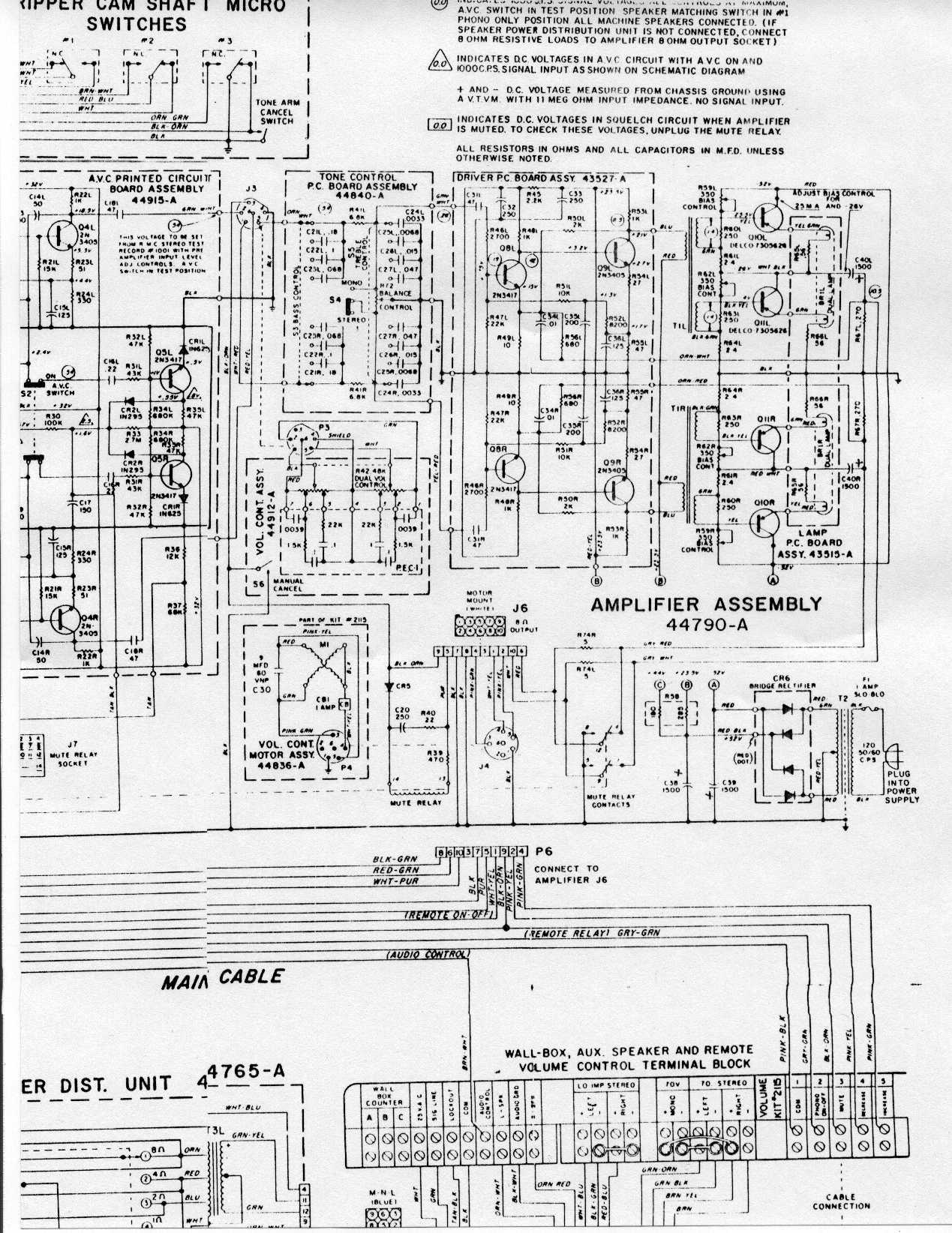

http://www.verntisdale.com/schem/440a.JPG

Rob/NYC

VA Bigdog · by **VA Bigdog** » Wed Apr 30, 2014 8:59 pm

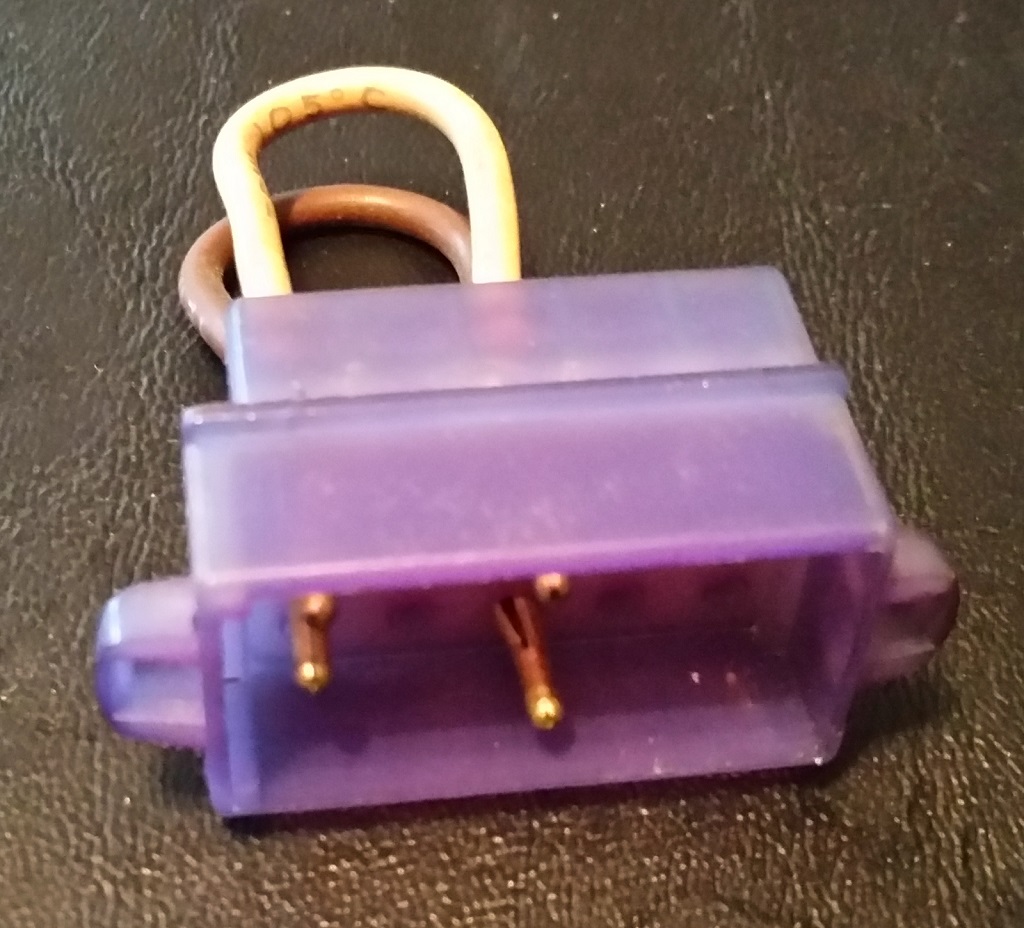

Pin 9 jumps to Pin 15
and
Pin 7 jumps to Pin 14

: 20140430_145404.jpg (226.46 KiB) Viewed 533 times

Las Vegas Jukebox · by **Las Vegas Jukebox** » Wed Apr 30, 2014 9:25 pm

Awesome, thanks - just what I needed.

Las Vegas Jukebox · by **Las Vegas Jukebox** » Fri May 02, 2014 9:25 pm

I don't believe this! Now I need the same thing for a Rock-Ola 490. If anyone could help I would really appreciate it. They say things come in threes, I hope the next Rock-Ola I buy doesn't have a jumper missing.

by **Ron Rich** » Sat May 03, 2014 2:32 am

Keith,
It's probably the same---
Ron Rich

Las Vegas Jukebox · by **Las Vegas Jukebox** » Sat May 03, 2014 2:36 am

PROBABLY? I wouldn't like to jump the wrong pins.

by **Ron Rich** » Sat May 03, 2014 2:44 am

Well, then check the schematic --
Ron Rich
