WRD Interface

Hi

I have a Rowe R-86 juke and a WRD wallbox.Does anyone have or knows of anyone that has one for sale.Thanks

Bob

Bob,
Didja check with the "Usual Suspects" listed in the jukebox section, under "announcements--used--parts--where to find--" ?
Ron Rich

Hello Bob,

As I said on one of the other forums I am testing an interface for you with a wallbox I am setting up to do the job.

I will be in touch soon.

Regards
Alan

Alan Hood
ami-man
UK

Hello Bob,

I have hooked up an interface with a wall box that is set up to connect to connect as a R-80S to R-83 using a 4-06372-03 interface and this works fine, selects A side and B side selections.

When you posted your original message regarding did you say that the serial led was not lit? also did you have the loom in the interface at connection P601 that connects into the R-86 CCC in P-103?

Also what connections are you using on TB601 on the on the interface. You only need to connect to clock & Data and you must connect a 28 Volts AC connection and ground direct to the wallbox, do not expect to get 28volts at the marked connections at TB601.

If you require any further information please contact me off of line.

Regards
Alan

Alan Hood
ami-man
UK
alan-hood@datex.co.uk

Hi Alan

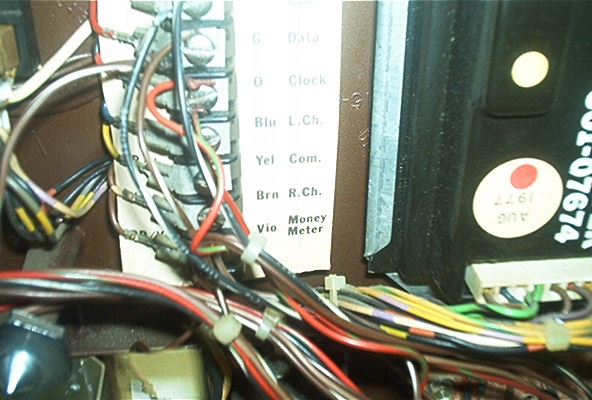

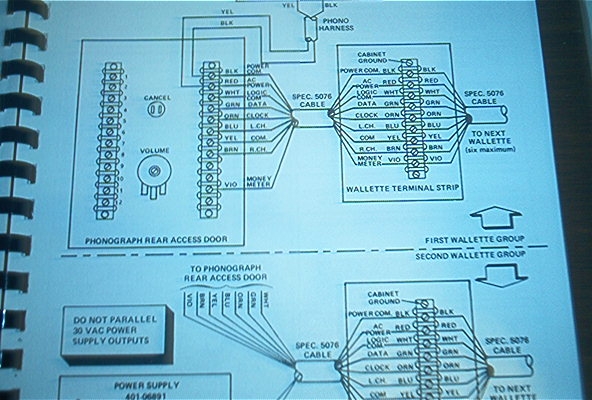

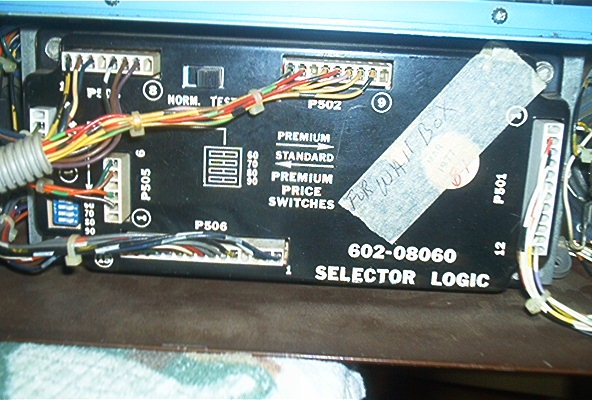

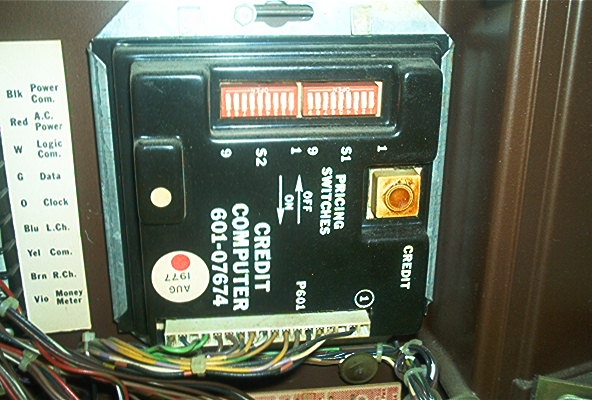

I going to try and send the pictures here,since your not getting them by email.

Bob

Hi Bob,

Thank you for posting the pictures, the interface I have had on test will be what you need for to connect to this wallbox.

Please contact me off of list if you want it sending out to you.

Regards
Alan

Alan Hood
ami-man
UK
