Solenoid Leaf Switch
Q&A about all types of jukeboxes: Wurlitzer, Seeburg, Rock-Ola, AMI, and more.
-
Sunnyledge
Topic author - Junior Member
- Posts: 4
- Joined: Wed Jan 01, 2014 10:15 pm
- Location: Plainfield, New Hampshire, USA

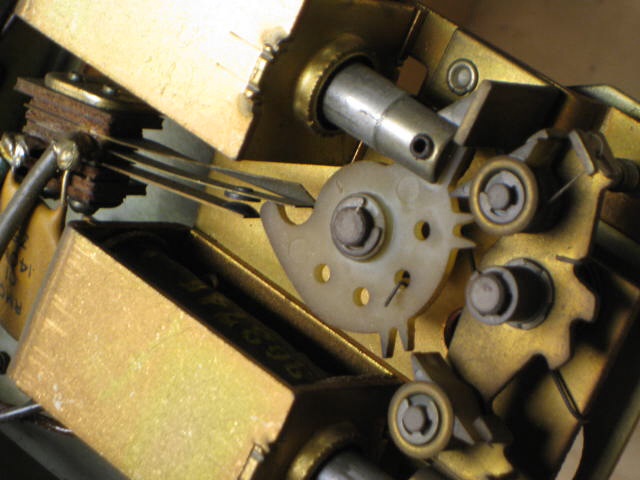

The third leaf in the solenoid under the stepper unit in my Seeburg Q160 is "twisted". Is this correct? I've only been able to find one picture online and in that image the third leaf is also twisted.
- Attachments
-
- image.jpg (80.02 KiB) Viewed 205 times
-
Ron Rich
- Forum Moderator
- Posts: 8196
- Joined: Sun May 06, 2007 11:31 pm
- Location: Millbrae (San Francisco area)CA, USA
Well,
Whut kin I say---
Other then that photo shows only two "leaf switches" --counting from the bottom up-the "third item" is not a "switch- blade", but a piece of "fish paper"--and yes, it usually twists, which causes no harm--
Also, that is the "Scan Control Assembly", and it is NOT "in the stepper", but is housed, along with (if so equipped), the optional stepper, in the TSU.
You may wish to purchase my "Seeburg Mechanism Guide", and read both it, and the Seeburg Published, Service Manual package. If so, PM me for info-- Ron Rich
Whut kin I say---
Other then that photo shows only two "leaf switches" --counting from the bottom up-the "third item" is not a "switch- blade", but a piece of "fish paper"--and yes, it usually twists, which causes no harm--
Also, that is the "Scan Control Assembly", and it is NOT "in the stepper", but is housed, along with (if so equipped), the optional stepper, in the TSU.
You may wish to purchase my "Seeburg Mechanism Guide", and read both it, and the Seeburg Published, Service Manual package. If so, PM me for info-- Ron Rich
