My DS100 restoration thread.

by burnt_finger » Fri May 13, 2016 4:40 pm

So I picked up a DS100 for a decent price because it had the ear speakers and a few other non-essential pieces I was missing on my DS160, so I got it home and took the parts I wanted an put them on my 160 with the plan of just parting this machine out but I just can’t do it so this is going to be the start of my restore thread.

Things I have done so far are

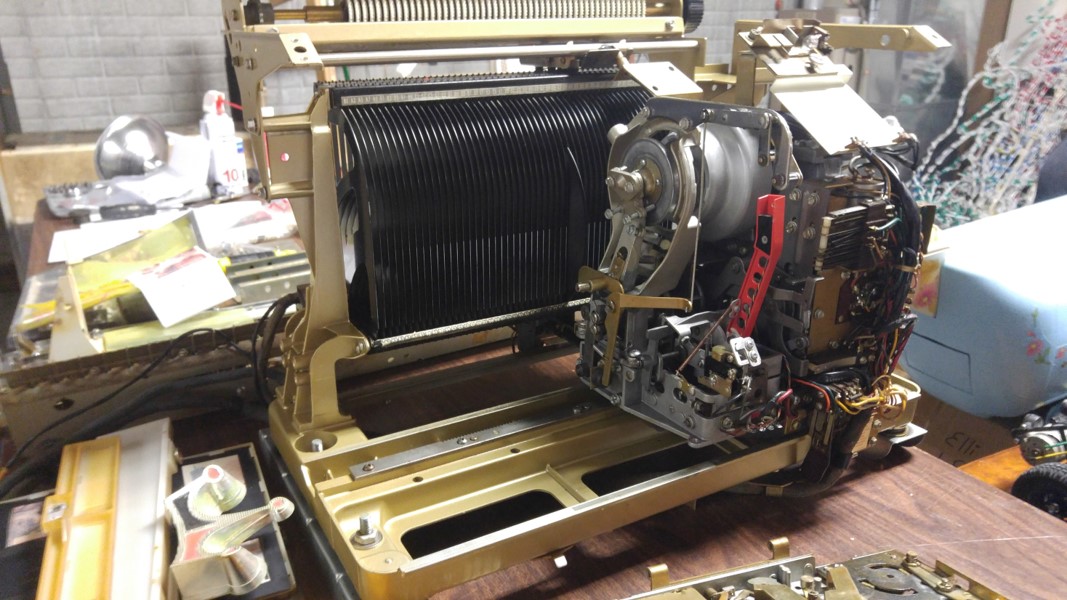

1. Degrease the whole mechanism remove clutch clean it up and re lubricate the mechanism.
2. Took apart the whole mechanism chassis and cleaned it up, lightly sanded it and repainted it, I didn’t want to lose the original record rack location sticker so I just carefully cleaned that up.
3. Cleaned up the electrical selector
4. My TSU had a blown transformer so I found a clean rebuild one

After powering up the TSU with my dim bulb tester to make sure it in fact was good I hooked up the selector and my mechanism and made some selections and it is running like a champ. Next on the list I am going to redo the cabinet, this will take me a bit of time but I will update the tread with my progress.

Brad
Attachments


Ron Rich
Forum Moderator
Posts: 8193
Joined: Sun May 06, 2007 11:31 pm
Location: Millbrae (San Francisco area)CA, USA

Re: My DS100 restoration thread.

by Ron Rich » Fri May 13, 2016 6:22 pm

Brad,
You are WAY too ambitious,or you have way too much time on your hands !! :roll: :lol:
Ron Rich


Ken Layton
Senior Member
Posts: 292
Joined: Sun Jun 07, 2009 8:06 pm
Location: Olympia, Washington USA

Re: My DS100 restoration thread.

by Ken Layton » Fri May 13, 2016 6:35 pm

Did you re-cap the TSU and amplifier? That machine is certainly old enough to need it.


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Fri May 13, 2016 8:22 pm

TSU is done, the amp will be the last thing I will do. And Ron, I am not to ambitious this is more preventative as it will stop me from buying another pinball machine at least for a while!! :wink:

Thanks
Brad


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Mon May 16, 2016 7:45 pm

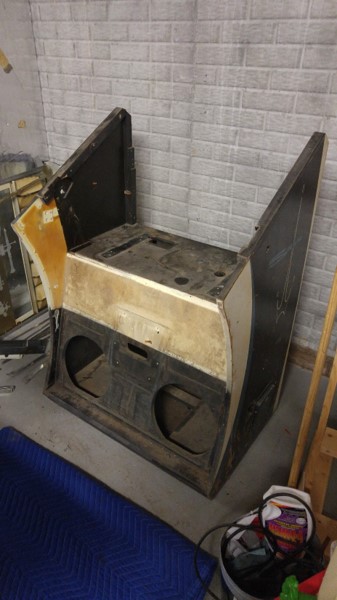

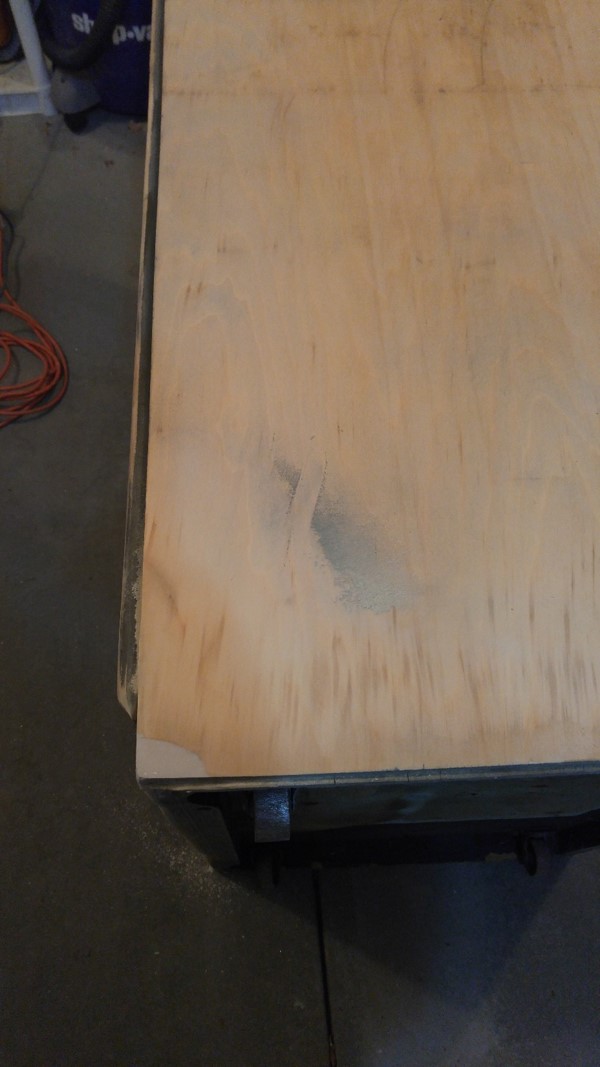

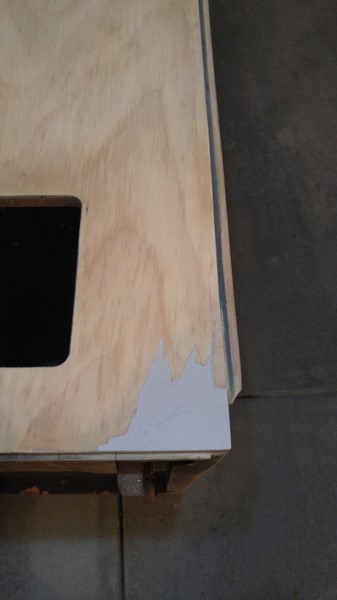

Cabinet Side’s sanded and bottom corners patched up, alone with the back around the door, will start working on the interior of the cabinet after that it should be ready for paint.
Attachments
(84.01 KiB) Not downloaded yet


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Thu May 19, 2016 1:49 am

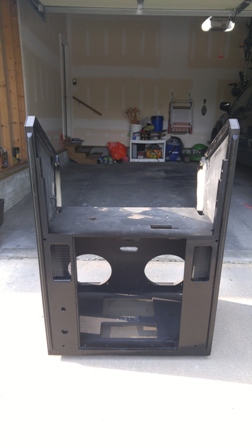

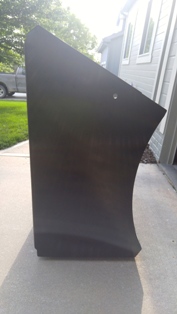

Have the base color down, so far so good. :)
Attachments


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Sat May 21, 2016 5:45 pm

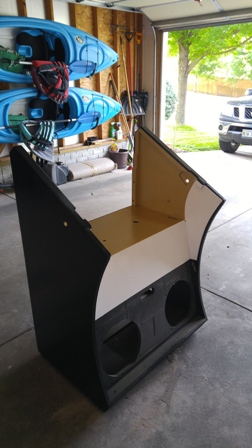

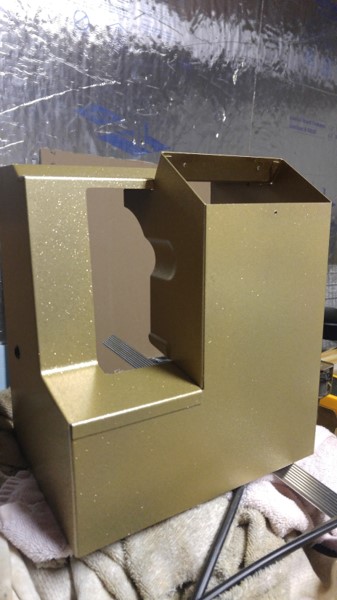

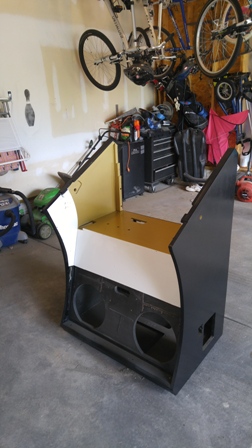

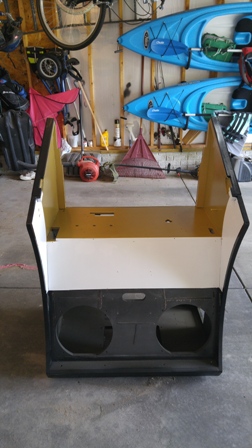

Cabinet main colors are down, I have always liked the way the Q series looks with everything matching in the interior so I decided to make the interior of mine gold.
Attachments

User avatar

MattTech
Senior Member
Posts: 1461
Joined: Tue Apr 29, 2008 7:38 am
Location: Philadelphia Pa USA - Home Electronics - Service Technician

Re: My DS100 restoration thread.

by MattTech » Sat May 21, 2016 9:09 pm

Nice.
How much you charge to do my living room and dining room? :shock:
The Internet is a marvelous thing, however it's not a good substitute for actually being there.


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Tue May 24, 2016 11:28 pm

MattTech wrote:Nice.
How much you charge to do my living room and dining room? :shock:

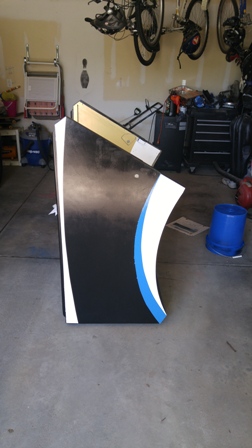

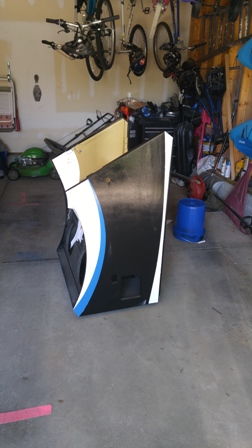

Thats funny :D I try to do as little as possible cosmetically as I try to keep everything original, but the paint was planking so bad that when you touched it it just fell off. Got some blue laid down, I have some overspray of white so I will be touching up the cabinet but that's no big deal.
Attachments


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Fri May 27, 2016 1:22 am

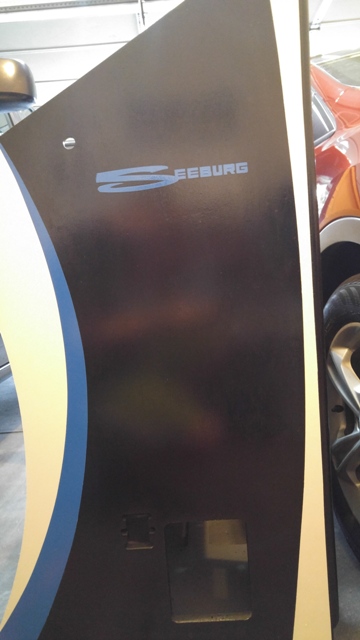

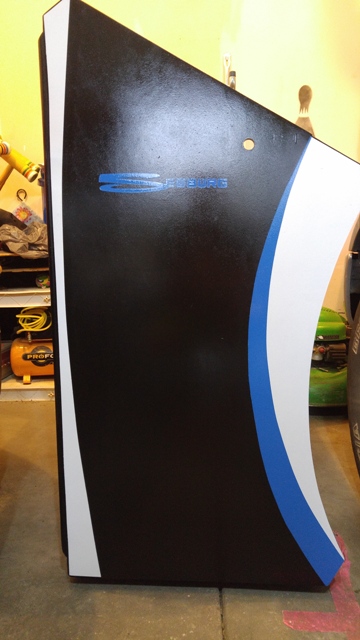

Got the lettering done tonight, after a day I will have to go through it and touch it up a bit but I think it looks good. :P

Brad
Attachments


Rob-NYC
Senior Member
Posts: 1844
Joined: Sun Sep 25, 2011 3:05 am
Location: Manhattan, NYC USA

Re: My DS100 restoration thread.

by Rob-NYC » Fri May 27, 2016 2:36 am

I am a bit awestruck with the quality of the paint job you've done -particularly the graphics. Did you do the lettering freehand?

These later tube models were generally given nothing more than a quickie "restore" on Tenth Ave, the sides were either redone with heavy vinyl contact paper or vinyl floor tile.

Rob-NYC
"If we believe absurdities, we shall commit atrocities" -- Voltaire


Ron Rich
Forum Moderator
Posts: 8193
Joined: Sun May 06, 2007 11:31 pm
Location: Millbrae (San Francisco area)CA, USA

Re: My DS100 restoration thread.

by Ron Rich » Fri May 27, 2016 4:47 am

Brad,
Awe-some !! I too would like to know how you did the lettering--When I was doing, them our "art guy" made up a stencil that he used.
( I didn't work for no "10th ave Geppetto shop" !!) Ron Rich


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Fri May 27, 2016 2:20 pm

Rob and Ron

I shake like an earthquake so there is definitely no free hand here :lol: the stripes where masked off with 3M blue painters tape and I did have stencils made for both the Logo and the Crown I was happy with the logo it’s about half inch short but the crown will need some tweaking but I only paid $28 bucks for the set so overall I am happy with them.

I’m more concerned after putting in the time with what I planned on doing with the crown, I was going to paint the whole crown white and shoot it lightly with the gold flake but after putting in all this work I am having seconds thoughts. :?

Thanks
Brad


Ron Rich
Forum Moderator
Posts: 8193
Joined: Sun May 06, 2007 11:31 pm
Location: Millbrae (San Francisco area)CA, USA

Re: My DS100 restoration thread.

by Ron Rich » Fri May 27, 2016 3:45 pm

Hi Brad,
Earthquakes in Omaha ?? Thought all you had there was Cows, and Corn ?? I'm in "earthquake country"--
Ron Rich


Topic author
burnt_finger
Regular Member
Posts: 49
Joined: Fri Aug 21, 2015 2:40 pm
Location: Omaha Ne, USA

Re: My DS100 restoration thread.

by burnt_finger » Fri May 27, 2016 8:56 pm

Ron
We are way more than just Cows and Corn we have soybeans also :D I do have to say though our locally sourced beef here is rather tasty!! :P
Brad
